Graph Widget

Intro
The Graph Widget offers a dynamic way to visualise the progression of a specific biomarker or metric over time. It enables users to track changes in their health status and gain insights into long-term patterns. Easily integrate it into your platform to help users understand how their health evolves.

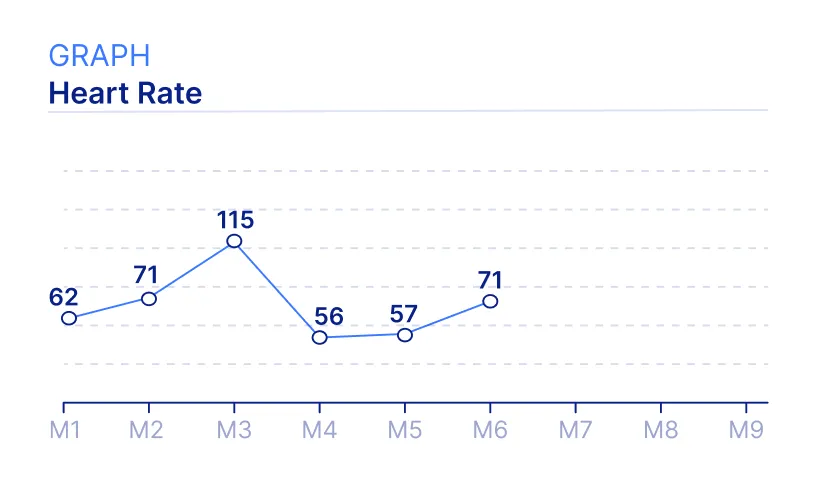

Layout
Medium
﻿
﻿View the IntelliWidgets.js reference ->﻿﻿
Usage
Creating the widget
The code snippet below creates a Graph widget and mounts﻿ it to the DOM:
Create and mount widget
const intelli = IntelliProveWidgets("user_action_token");

const config = { /* config */ };
const variation = "default";
const themeOverrides = { /* theme overrides */ };
intelli.mountWidget(
    "#hr-graph-tile",
    "graph",
    config,
    variation,
    themeOverrides
);
const intelli = IntelliProveWidgets("user_action_token");

const config = { /* config */ };
const variation = "default";
const themeOverrides = { /* theme overrides */ };
intelli.mountWidget(
    "#hr-graph-tile",
    "graph",
    config,
    variation,
    themeOverrides
);
﻿
Config
The Graph widget requires additional configuration parameters that describe which parameter should be displayed. Specify the timerange and page to select a specific portion of the data.
Config
const config = {
   parameter: "heart_rate",
   title: "Heart rate graph",
   start: "2024-12-21T00:00:00",
   stop: "2024-12-31T23:59:59"
}

const config = {
   parameter: "heart_rate",
   title: "Heart rate graph",
   start: "2024-12-21T00:00:00",
   stop: "2024-12-31T23:59:59"
}
﻿
Property
Description
parameter
string
Biomarker or metric of choice
title
nullable string
Optionally override the graph title with a string value of choice
start
nullable datetime string
Start date and time for the range of historical data to be retrieved
Format: YYYY-MM-DDTHH:MM:SS (ISO 8601)
Default: UTCNOW - 8 days
stop
nullable datetime string
Start date and time for the range of historical data to be retrieved
Format: YYYY-MM-DDTHH:MM:SS (ISO 8601)
Default: UTCNOW
List of available biomarkers﻿ and metrics﻿:
"heart_rate"
"respiratory_rate"
"resonant_breathing_score"
"heart_rate_variability"
"resting_heart_rate"
"resting_respiratory_rate"
"mental_stress"
"mental_health_risk"
"sleep_quality"
"energy_balance"
Variation
Only one variation of the Graph Widget is available.
"default"
Theme Overrides
The Graph Widget allows individual fine-tuning of the appearance﻿.
The used accent colors are:
Brand Primary
Support 500
﻿

Property	Description
parameter string	Biomarker or metric of choice
title nullable string	Optionally override the graph title with a string value of choice
start nullable datetime string	Start date and time for the range of historical data to be retrieved Format: YYYY-MM-DDTHH:MM:SS (ISO 8601) Default: UTCNOW - 8 days
stop nullable datetime string	Start date and time for the range of historical data to be retrieved Format: YYYY-MM-DDTHH:MM:SS (ISO 8601) Default: UTCNOW

Updated 03 Jan 2025
