Introduction
Using the native iOS/Android WebView implies some extra setup in your ReactNative project. This setup involves incorporating the IntelliProve plug-in Mobile SDK files into your project dependencies for both iOS and Android and adding the necessary bridging code.
All this is nicely laid out in our step-by-step guide below.
The integration guide covers three sections:
Setting up the iOS code
Setting up the Android code
Interfacing with the Native code from ReactNative (bridging)
GitHub
Our GitHub repository provides a fully functional example of our platform's integration, demonstrating the seamless setup and utilisation of our native SDKs for iOS and Android platforms.
﻿https://github.com/IntelliProve/intelliprove-web-plugin-react_native﻿
Minimal Requirements
For this guide, we assume a minimal 'Hello World' application generated by the ReactNative project initialisation.
1. iOS Framework Setup
Adding the framework
Last update 18/06/2024 19:13
IntelliProveSDK.xcframework.zip
﻿
Add folder ios/Frameworks
Copy the unzipped IntelliProveSDK.xcframework folder into this folder
Open the ios/[PROJECT_NAME].xcodeproj project in XCode
Open Project Settings > General and in the Frameworks, Libraries, and Embedded Content section, add the IntelliProveSDK.xcframework that you copied above as a dependency
﻿
Setting up the project
In Project Settings > Build Settings tab, verify that the iOS Deployment Target is set appropriately. The minimum supported version for the IntelliProveSDK is iOS 15.0

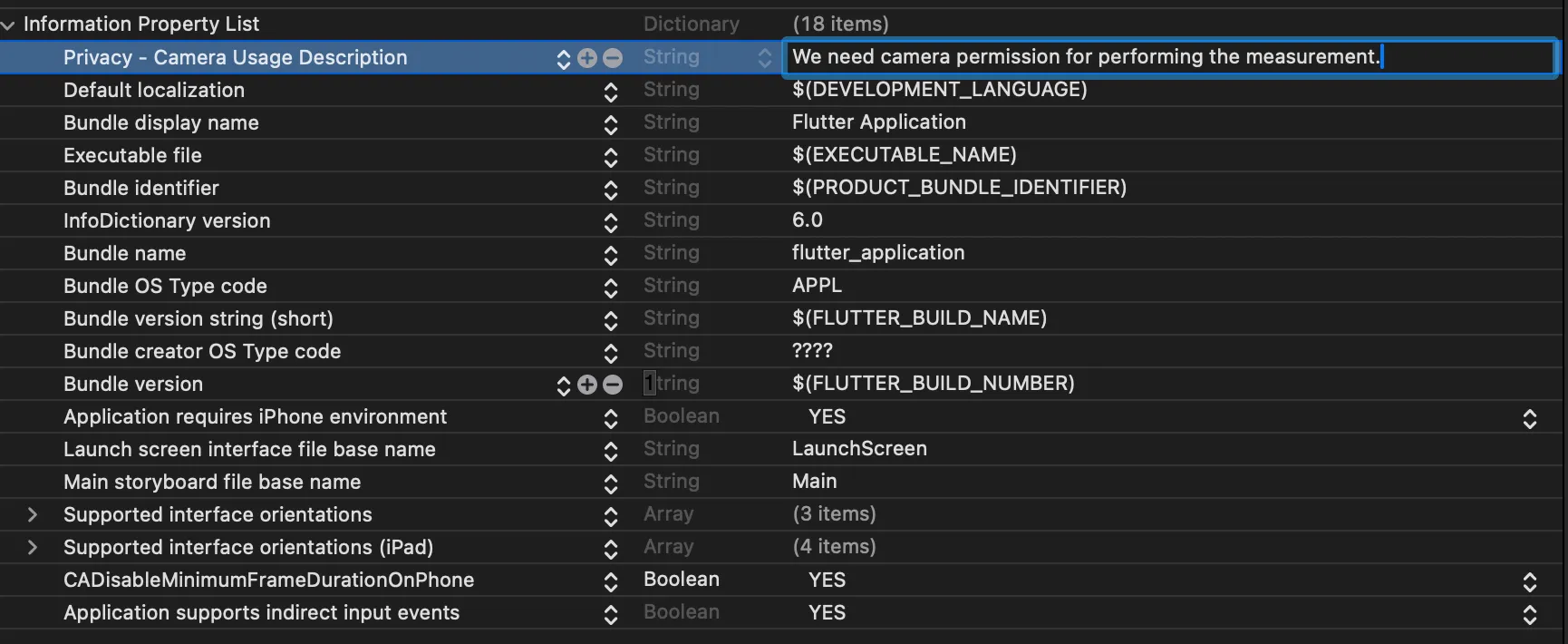

Now open the Project Settings > Info tab to add the following Info.plist value:
NSCameraUsageDescription - Add a String here that will be displayed when the application asks the user for Camera Usage permissions
﻿
Updating the code
In the project tree, add a new header file called WebViewModule.h, and add the following code:
ObjectiveC
#import <React/RCTEventEmitter.h>

// We create a ReactNative Module that can bridge from React to iOS, but also is an Event Emitter to post back to React
@interface WebViewModule: RCTEventEmitter

@end
#import <React/RCTEventEmitter.h>

// We create a ReactNative Module that can bridge from React to iOS, but also is an Event Emitter to post back to React
@interface WebViewModule: RCTEventEmitter

@end
﻿
Next to that file, add an ObjectiveC file WebViewModule.m:
ObjectiveC
#import "WebViewModule.h"
#import "AppDelegate.h"

// Add the IntelliProveSDK import
#import "IntelliProveSDK/IntelliProveSDK-Swift.h"

#import <SwiftUI/SwiftUI.h>
#import <React/RCTBridge.h>

@interface WebViewModule () <IntelliWebViewDelegate>
@end

@implementation WebViewModule

// We export this class as a Module to ReactNative
RCT_EXPORT_MODULE();

// We add an event name for the Post Message and register it.
// The name is important, it must match the name of the event in the *.tsx file
NSString *postMessageEvent = @"IntelliWebViewPostMessage";

- (NSArray<NSString *> *)supportedEvents {
  return @[postMessageEvent];
}

/// This function creates a new IntelliWebView using the Factory method,
/// passing in the provided urlString, and setting this class as a delegate for the IntelliWebView
/// It then presents this web view on top of the Window's rootViewController
/// This function is exported so it can be used from within ReactNative code
RCT_EXPORT_METHOD(presentWebView:(NSString *)urlString) {
  dispatch_async(dispatch_get_main_queue(), ^{
    UIViewController *rootViewController = [UIApplication sharedApplication].delegate.window.rootViewController;
    UIViewController *webViewController = [IntelliWebViewFactory newWebViewWithUrlString:urlString delegate:self];
    webViewController.modalPresentationStyle = UIModalPresentationFullScreen;
    [rootViewController presentViewController:webViewController animated:YES completion:nil];
  });
}

/// Implementation of the `IntelliWebViewDelegate` protocol
/// This dispatches received `PostMessage API` messages through to the ReactNative application
- (void)didReceiveWithPostMessage:(NSString *)postMessage {
  // Pass message to React App through an event
  [self sendEventWithName:postMessageEvent body:postMessage];
}

@end
#import "WebViewModule.h"
#import "AppDelegate.h"

// Add the IntelliProveSDK import
#import "IntelliProveSDK/IntelliProveSDK-Swift.h"

#import <SwiftUI/SwiftUI.h>
#import <React/RCTBridge.h>

@interface WebViewModule () <IntelliWebViewDelegate>
@end

@implementation WebViewModule

// We export this class as a Module to ReactNative
RCT_EXPORT_MODULE();

// We add an event name for the Post Message and register it.
// The name is important, it must match the name of the event in the *.tsx file
NSString *postMessageEvent = @"IntelliWebViewPostMessage";

- (NSArray<NSString *> *)supportedEvents {
  return @[postMessageEvent];
}

/// This function creates a new IntelliWebView using the Factory method,
/// passing in the provided urlString, and setting this class as a delegate for the IntelliWebView
/// It then presents this web view on top of the Window's rootViewController
/// This function is exported so it can be used from within ReactNative code
RCT_EXPORT_METHOD(presentWebView:(NSString *)urlString) {
  dispatch_async(dispatch_get_main_queue(), ^{
    UIViewController *rootViewController = [UIApplication sharedApplication].delegate.window.rootViewController;
    UIViewController *webViewController = [IntelliWebViewFactory newWebViewWithUrlString:urlString delegate:self];
    webViewController.modalPresentationStyle = UIModalPresentationFullScreen;
    [rootViewController presentViewController:webViewController animated:YES completion:nil];
  });
}

/// Implementation of the `IntelliWebViewDelegate` protocol
/// This dispatches received `PostMessage API` messages through to the ReactNative application
- (void)didReceiveWithPostMessage:(NSString *)postMessage {
  // Pass message to React App through an event
  [self sendEventWithName:postMessageEvent body:postMessage];
}

@end
﻿
Now open AppDelegate.m in the project tree and add the registerWebViewModule method as described below (note the changes in the applicationselector):
ObjectiveC
#import <React/RCTBundleURLProvider.h>
#import <React/RCTBridge.h>

// This is an example of how the AppDelegate may look, it may be defined differently in another project
@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
  self.moduleName = @"PROJECT_NAME";
  self.initialProps = @{};
  BOOL result = [super application:application didFinishLaunchingWithOptions:launchOptions];

  // Register the WebViewModule
  [self registerWebViewModule];

  return result;
}

...

// This registers a NativeModule with the ReactNative application.
// The name is important, it must match the name of the NativeModule in the *.tsx file
- (void)registerWebViewModule
{
  RCTBridge *bridge = self.bridge;

  if (bridge) {
    [bridge moduleForName:@"WebViewModule"];
  }
}

@end
#import <React/RCTBundleURLProvider.h>
#import <React/RCTBridge.h>

// This is an example of how the AppDelegate may look, it may be defined differently in another project
@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
  self.moduleName = @"PROJECT_NAME";
  self.initialProps = @{};
  BOOL result = [super application:application didFinishLaunchingWithOptions:launchOptions];

  // Register the WebViewModule
  [self registerWebViewModule];

  return result;
}

...

// This registers a NativeModule with the ReactNative application.
// The name is important, it must match the name of the NativeModule in the *.tsx file
- (void)registerWebViewModule
{
  RCTBridge *bridge = self.bridge;

  if (bridge) {
    [bridge moduleForName:@"WebViewModule"];
  }
}

@end
﻿
2. Android Framework Setup
Adding the framework
Last update 16/09/2024 17:00
IntelliProveWebView.aar
﻿
All the following actions are taken in the android root folder of the ReactNative project
Add folder app/libs
Copy the IntelliProveWebView.aar into this folder
In app/build.gradle, add a dependency for the IntelliProveWebView.aarand androidx's AppCompatibility ConstraintLayout.
Java
dependencies {
    ...
    implementation("androidx.constraintlayout:constraintlayout:2.1.4")
    implementation files('libs/IntelliProveWebView.aar')
}
dependencies {
    ...
    implementation("androidx.constraintlayout:constraintlayout:2.1.4")
    implementation files('libs/IntelliProveWebView.aar')
}
﻿
Setting up the project
In build.gradle (not app/build.gradle),  ensure the correct Kotlin version is used, and define the minSdkVersion:
Java
buildscript {
    ext {
        minSdkVersion = 24
        kotlinVersion = "1.8.0"

    }
    ...
}
buildscript {
    ext {
        minSdkVersion = 24
        kotlinVersion = "1.8.0"

    }
    ...
}
﻿
In app/src/main/AndroidManifest.xml, add the needed permissions for Camera and Internet usage, and an activity tag, so the IntelliWebViewActivity can be shown in the application:
XML
<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    ...

    <uses-feature
        android:name="android.hardware.camera"
        android:required="false" />

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.CAMERA" />

    ...

    <application ...>
        ...
        <activity android:name="com.intelliprove.webview.IntelliWebViewActivity" />
        ...
    </application>
</manifest>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    ...

    <uses-feature
        android:name="android.hardware.camera"
        android:required="false" />

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.CAMERA" />

    ...

    <application ...>
        ...
        <activity android:name="com.intelliprove.webview.IntelliWebViewActivity" />
        ...
    </application>
</manifest>
﻿
Updating the code
Find the folder where the MainApplication of the project is located (for example: app/src/main/java/[packagename]/MainApplication.kt
Now we'll add the React NativeModule that acts as a bridge between ReactNative and Android, add a new file WebViewModule.kt in this same folder:
Kotlin
// Use your package name here
package com.<PACKAGE_NAME>

import android.content.Context

// Imports for ReactNative's bridging
import com.facebook.react.bridge.JavaScriptModule
import com.facebook.react.bridge.ReactApplicationContext
import com.facebook.react.bridge.ReactContextBaseJavaModule
import com.facebook.react.bridge.ReactMethod
import com.facebook.react.modules.core.DeviceEventManagerModule

// Imports for the IntelliProve WebView
import com.intelliprove.webview.IntelliWebViewActivity
import com.intelliprove.webview.IntelliWebViewDelegate

class WebViewModule(reactContext: ReactApplicationContext) : ReactContextBaseJavaModule(reactContext), IntelliWebViewDelegate,
    JavaScriptModule {
    // This defines the name of the NativeModule
    // Make sure to use the same name as in the ReactNative App code
    override fun getName(): String {
        return "WebViewModule"
    }

    // Add a ReactMethod to react to the trigger and show the WebView sent from the ReactNative App code
    @ReactMethod
    fun presentWebView(urlString: String) {
        currentActivity?.let {
            IntelliWebViewActivity.start(it, urlString, this)
        }
    }

    // This is the implementation of the `IntelliWebViewDelegate` interface
    // That way it can receive and emit callbacks from the Web App's `PostMessage API` to ReactNative
    override fun didReceivePostMessage(postMessage: String) {
        reactApplicationContext
            .getJSModule(DeviceEventManagerModule.RCTDeviceEventEmitter::class.java)
            .emit("IntelliWebViewPostMessage", postMessage)
    }
}
// Use your package name here
package com.<PACKAGE_NAME>

import android.content.Context

// Imports for ReactNative's bridging
import com.facebook.react.bridge.JavaScriptModule
import com.facebook.react.bridge.ReactApplicationContext
import com.facebook.react.bridge.ReactContextBaseJavaModule
import com.facebook.react.bridge.ReactMethod
import com.facebook.react.modules.core.DeviceEventManagerModule

// Imports for the IntelliProve WebView
import com.intelliprove.webview.IntelliWebViewActivity
import com.intelliprove.webview.IntelliWebViewDelegate

class WebViewModule(reactContext: ReactApplicationContext) : ReactContextBaseJavaModule(reactContext), IntelliWebViewDelegate,
    JavaScriptModule {
    // This defines the name of the NativeModule
    // Make sure to use the same name as in the ReactNative App code
    override fun getName(): String {
        return "WebViewModule"
    }

    // Add a ReactMethod to react to the trigger and show the WebView sent from the ReactNative App code
    @ReactMethod
    fun presentWebView(urlString: String) {
        currentActivity?.let {
            IntelliWebViewActivity.start(it, urlString, this)
        }
    }

    // This is the implementation of the `IntelliWebViewDelegate` interface
    // That way it can receive and emit callbacks from the Web App's `PostMessage API` to ReactNative
    override fun didReceivePostMessage(postMessage: String) {
        reactApplicationContext
            .getJSModule(DeviceEventManagerModule.RCTDeviceEventEmitter::class.java)
            .emit("IntelliWebViewPostMessage", postMessage)
    }
}
﻿
In the same folder still, add another file IntelliReactPackage.kt to register the WebViewModule on the application in a 'ReactPackage':
Kotlin
// Use your package name here
package com.<PACKAGE_NAME>

import android.content.Context
import android.view.View
import com.facebook.react.ReactPackage
import com.facebook.react.bridge.NativeModule
import com.facebook.react.bridge.ReactApplicationContext
import com.facebook.react.uimanager.ReactShadowNode
import com.facebook.react.uimanager.ViewManager

class IntelliReactPackage : ReactPackage {
    override fun createNativeModules(reactContext: ReactApplicationContext): MutableList<NativeModule> {
        val modules = mutableListOf<NativeModule>()
        modules.add(WebViewModule(reactContext))
        return modules
    }

    override fun createViewManagers(p0: ReactApplicationContext): MutableList<ViewManager<View, ReactShadowNode<*>>> {
        return emptyList<ViewManager<View, ReactShadowNode<*>>>().toMutableList()
    }
}
// Use your package name here
package com.<PACKAGE_NAME>

import android.content.Context
import android.view.View
import com.facebook.react.ReactPackage
import com.facebook.react.bridge.NativeModule
import com.facebook.react.bridge.ReactApplicationContext
import com.facebook.react.uimanager.ReactShadowNode
import com.facebook.react.uimanager.ViewManager

class IntelliReactPackage : ReactPackage {
    override fun createNativeModules(reactContext: ReactApplicationContext): MutableList<NativeModule> {
        val modules = mutableListOf<NativeModule>()
        modules.add(WebViewModule(reactContext))
        return modules
    }

    override fun createViewManagers(p0: ReactApplicationContext): MutableList<ViewManager<View, ReactShadowNode<*>>> {
        return emptyList<ViewManager<View, ReactShadowNode<*>>>().toMutableList()
    }
}
﻿
Finally, open the MainApplication.kt that initializes the ReactNative application in Android. Add the following code to register the Package we created above:
Kotlin
...

import com.<PACKAGE_NAME>.IntelliReactPackage

class MainApplication : Application(), ReactApplication {

  override val reactNativeHost: ReactNativeHost =
      object : DefaultReactNativeHost(this) {
        override fun getPackages(): List<ReactPackage> {
          PackageList(this).packages.apply {
            // Packages that cannot be autolinked yet can be added manually here, for example:
            // add(MyReactNativePackage())
            add(IntelliReactPackage())
          }
        }

        ...
      }

    ...
}

...

import com.<PACKAGE_NAME>.IntelliReactPackage

class MainApplication : Application(), ReactApplication {

  override val reactNativeHost: ReactNativeHost =
      object : DefaultReactNativeHost(this) {
        override fun getPackages(): List<ReactPackage> {
          PackageList(this).packages.apply {
            // Packages that cannot be autolinked yet can be added manually here, for example:
            // add(MyReactNativePackage())
            add(IntelliReactPackage())
          }
        }

        ...
      }

    ...
}
﻿
3. ReactNative Integration
While many possibilities exist to bridge the gap between Native iOS/Android and ReactNative, this document serves as a guide to integrating the IntelliProveSDK into a ReactNative application project.
To be able to call functions on, and receive callbacks from the Native application, we can implement NativeModules in the ReactNative Application.
Open App.tsx (or wherever in the ReactNative app that the IntelliProve web view will be used)
Add the following imports:
TypeScript
// For registering the event listener
import { useEffect } from 'react';
import {
  NativeModules, // To use NativeModules, so we can call Native functions
  NativeEventEmitter, // To register EventEmitters, so we can respond to events from Native code
} from 'react-native';
// For registering the event listener
import { useEffect } from 'react';
import {
  NativeModules, // To use NativeModules, so we can call Native functions
  NativeEventEmitter, // To register EventEmitters, so we can respond to events from Native code
} from 'react-native';
﻿
Add a function handleOpenWebView that calls the NativeModules to present the Web View
Also add a callback handler for receiving 'PostMessage' messages.
The post messages allow you to track the progress of the Face Scan and obtain the results from the IntelliProve plug-in immediately after the user has performed the Face Scan. This allows you to use the results in your mobile app, enabling you to link actions to the results or design a custom results screen.
You can find an overview of the different types of messages on the Message events﻿ page.
Finally, we call the handleOpenWebView()function from wherever the entry point to the WebView should be. The URL to open the IntelliProve WebApp including the action_token is also passed to this function. In our example, it is added on a Button press handler:
TypeScript
function App(): React.JSX.Element {
  const handleOpenWebView = () => {
    NativeModules.WebViewModule.presentWebView('https://plugin-dev.intelliprove.com/?action_token=xxx');
  };

  // Add Event Listener for IntelliWebViewPostMessage API
  useEffect(() => {
    // Subscribe to the event when the App component mounts
    const eventEmitter = new NativeEventEmitter(NativeModules.WebViewModule);
    // Make sure the name of the listener matches what was used on Native code
    const subscription = eventEmitter.addListener('IntelliWebViewPostMessage', (postMessage) => {
      // Handle the received postMessage
      console.log('ReactNative PostMessage Full Body:', postMessage);

      try {
        // The PostMessage is received as a JSON String, so we need to parse it
        const parsedMessage = JSON.parse(postMessage);
        if (parsedMessage && parsedMessage.stage) {
          console.log('ReactNative PostMessage Stage:', parsedMessage.stage);
        } else {
          console.warn('ReactNative invalid PostMessage format:', parsedMessage);
        }
      } catch (error) {
        console.error('ReactNative error parsing PostMessage:', error);
      }
    });

    // Unsubscribe from the event when the component unmounts
    return () => {
      subscription.remove();
    };
  }, []); // Empty dependency array means this effect runs once when the component mounts

  ...

  return (
    ...
    <Button title="Open WebView" onPress={handleOpenWebView} />
    ...
  )
}
function App(): React.JSX.Element {
  const handleOpenWebView = () => {
    NativeModules.WebViewModule.presentWebView('https://plugin-dev.intelliprove.com/?action_token=xxx');
  };

  // Add Event Listener for IntelliWebViewPostMessage API
  useEffect(() => {
    // Subscribe to the event when the App component mounts
    const eventEmitter = new NativeEventEmitter(NativeModules.WebViewModule);
    // Make sure the name of the listener matches what was used on Native code
    const subscription = eventEmitter.addListener('IntelliWebViewPostMessage', (postMessage) => {
      // Handle the received postMessage
      console.log('ReactNative PostMessage Full Body:', postMessage);

      try {
        // The PostMessage is received as a JSON String, so we need to parse it
        const parsedMessage = JSON.parse(postMessage);
        if (parsedMessage && parsedMessage.stage) {
          console.log('ReactNative PostMessage Stage:', parsedMessage.stage);
        } else {
          console.warn('ReactNative invalid PostMessage format:', parsedMessage);
        }
      } catch (error) {
        console.error('ReactNative error parsing PostMessage:', error);
      }
    });

    // Unsubscribe from the event when the component unmounts
    return () => {
      subscription.remove();
    };
  }, []); // Empty dependency array means this effect runs once when the component mounts

  ...

  return (
    ...
    <Button title="Open WebView" onPress={handleOpenWebView} />
    ...
  )
}
﻿
The WebView is automatically dismissed by the SDK when receiving the dismiss post message.
Next steps
To match the plug-in with your brand's colours and fonts, please visit our Customisation﻿ documentation.
﻿
Updated 26 Nov 2024
Embed in mobile app
Flutter
ReactNative

Introduction

GitHub

Minimal Requirements

1. iOS Framework Setup

Adding the framework Last update 18/06/2024 19:13

Setting up the project

Updating the code

2. Android Framework Setup

Adding the framework Last update 16/09/2024 17:00

Setting up the project

Updating the code

3. ReactNative Integration

Next steps
